"Outside" Jaws for Kurt
© Frank Ford 2009; Photos by FF

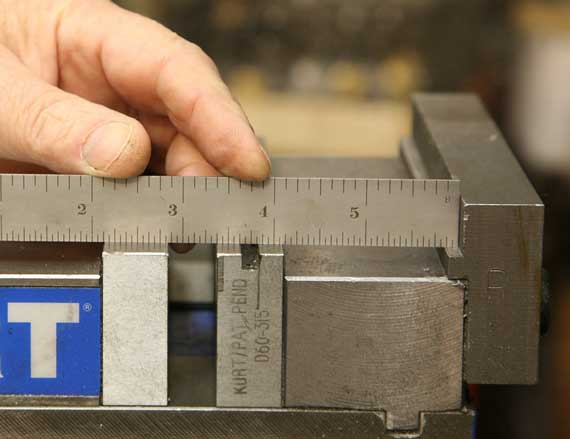

Not long after I got my new Kurt milling vise, I wanted to hold a piece that was a bit beyond the capacity of the jaws, so I made a pair of jaws to fit on the front and back of the vise. After aligning the vise to the X-axis of the mill I cut a ledge in each jaw at the same height as the original hardened jaws.

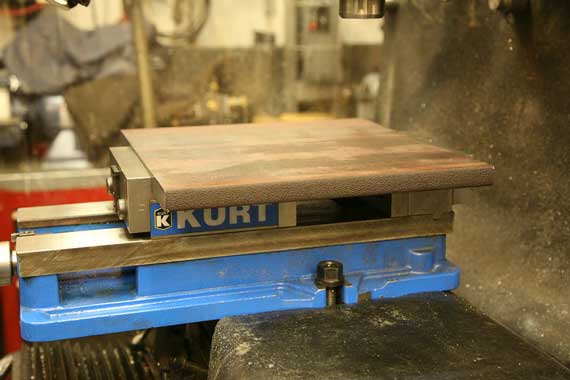

Now, I can mill a wide piece and have support at both ends and underneath at the center:

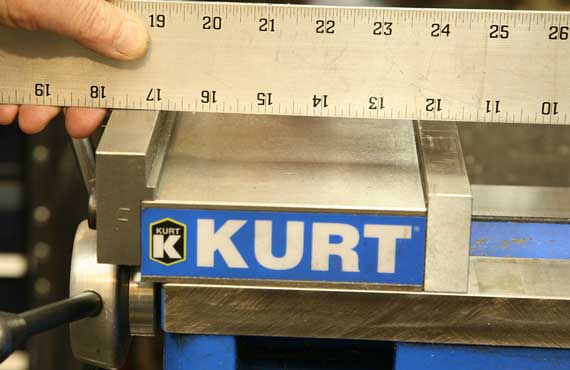

For some items, the capacity of my vise is nearly double:
