Scalloped Braces?
What are scalloped braces? Does that mean they're made with milk and cheese? Does my guitar have scalloped braces? Should I care? What do they do for the tone? If I have scalloped braces, how come I can't see 'em? If my braces aren't scalloped can they get scalloped?
Hard to say when all this started. Must have been in the late '50s when players began to realize that older Martin guitars sounded better than new ones. Looking inside the guitar, the only differences they could see were the shaping of the top braces.
You have to look with a mirror, because the significant braces are way back inside from just ahead of the bridge to the end of the guitar. It's never possible to see scalloped braces by just looking inside the soundhole.
I'm not here to recommend one system or another. I just want to illustrate the concept of "scalloped" braces because it's a term we hear in conversation among players and guitar makers.
I believe that players should judge guitars by the way they sound, not by the terminology used in their construction or advertising.
I constantly refer to Martin instruments because Martin devised the whole system and because Martin guitars are the only ones that are comparable through so many decades of production.
Let's look through the INSIGHT video spycam:
The older Martins had top braces that were scooped out with little peaks near the ends. Here's an interior view of a 1907 Martin 0-18:
Remember that ALL of the older Martins had braces contoured in this general manner, and Martin never called them "scalloped" or anything else for that matter. They were just top braces.
For a look at Martin's current bracing systems, please check out Martin Top Braces, in the History section.
The newer ones had straight braces that tapered a bit at the ends. This is a view inside a 1973 Martin D-28. This guitar also has a large rosewood bridge plate, a feature that began in the late '60s.
There's quite a bit of disagreement over the effects and benefits of one bracing system over another. We all agree that IF ALL THINGS ARE EQUAL, namely same maker, size, style, material and age of guitar, that the scalloped brace instrument will have more bass response. It's predictable, since bass response is generally increased if the top is made more flexible, and the scalloped braces are more flexible where they are cut lower.
Martin is the only really old American guitar company that has made essentially the same models year after year. It's easy for us to examine guitars of different vintages and compare their sound and construction features. One question that comes up all the time: Does it have scalloped braces?
Long about the end of World War II, Martin discontinued the practice of contouring the braces and started leaving them full height through their length. We refer to those guitars made before the change to straight braces as "prewar Martins" even though many were made during the war.
It really doesn't matter if they did it because of loss of manpower to the War Effort, because they wanted to save money or because they were concerned about strength of the top. Fact is, they did change the bracing late in the year of 1944. All guitars made from the beginning of 1945 to 1976 have "straight" top braces. Starting in 1977, Martin has reissued countless old styles and has made both straight and scalloped brace guitars.
Because older Martin guitars with scalloped braces became so desirable, people started referring to their braces as "scalloped," to distinguish them from the newer style braces. Eventually, other makers, including the Asian imports began to tout "scalloped braces" as one of their features. These instruments may have been decidedly inferior, but they did have scalloped braces.
Let's look at some guitar tops.
These are tops removed from destroyed guitars or tops that weren't used in building new ones because of some small defect.

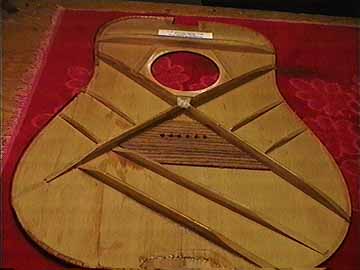

Here's the straight braced Martin top, this time from a 1974 D-18:
The oversize rosewood bridge plate tends to dampen bass response and volume. It was a feature found on Martin guitars made during the height of the folk revival of the 1960s & "70s.

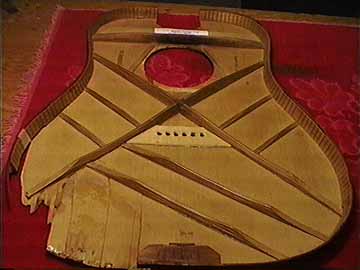

Here's the classic scalloped brace design of a 1943 D-18:
Notice the scooped out areas of the lower diagonal braces and the lower end of the big cross braces. All the upper braces, from the intersection of the "X" to the neck, are identical. Those are the ones you can see through the soundhole.
Just because you can predict the difference between Martin guitars with and without scalloped braces, don't make the mistake of thinking that the same reasoning applies to other makers. For example, a scalloped brace Taylor won't sound the same as a scalloped brace Martin. The Taylor will sound like a Taylor (this is a good thing) and the Martin will sound like a Martin (an equally good thing.)
How about straight brace Taylor guitars? Except for a signature model or two, Taylor uses only scalloped braces on their dreadnoughts:
Notice that the shape of Taylor's braces are different than Martin's. This is the sort of thing that gives instruments a "family" sound. If Taylor guitars were built identically to Martin guitars, then they probably would sound the same, too. So much for variety!
Straight brace guitars are not necessarily inferior. Some players prefer the sound of Martin instruments with the straight braces. These pickers may refer to bassy sounding scalloped models as being "tubby." Of course, the scalloped brace Martin player might call the straight brace models "tight" or "tinny."
Some makers make both straight and scalloped models, and work sensitively to control the sound of each.
Look at Santa Cruz Guitar Co's scalloped braces:
And now their straight braces:
Unlike the Martin system, Santa Cruz's is not simply a matter of taking the same brace and scooping it out or not scooping it out. These straight, tapered braces are completely different in their patterns of flexibility. The differences in tone are far more subtle than between Martin's straight and scalloped braces.
Yes, you can "scallop" the braces of a guitar after it is made. We used to do that in the days when you couldn't buy good new lightly braced guitars. Now, however, there is an unlimited variety of great new instruments available, and we really just don't do that any more. Better to upgrade to a significantly better sounding guitar than just to modify and hope for improvement.
Here is a view of the inside of a 1957 Martin D-28. The top braces have been modified by working through the soundhole. This is a pretty good job, and although the braces don't look identical to original Martin braces from the 1940s, they bear a fair resemblance to the older style:
When its owner bought this D-28 new in 1957, he elected to have the braces "scalloped" for better bass response. He still owns the guitar and is still pleased with his decision. If he were to sell the guitar in today's market, the modification would result in a significantly lower selling price.
In case you might be wondering about the longevity of a modified guitar, let me assure you that the top of this guitar looks as healthy as any I've seen. There is absolutely no sign of deformation of the top after 30 years!
